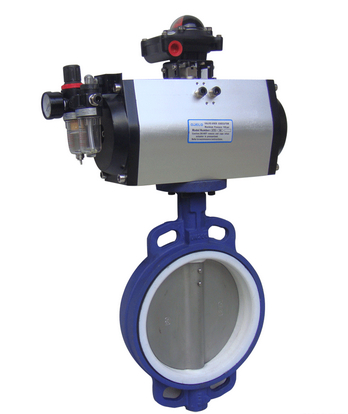

【D671F气动对夹衬氟蝶阀】的详细资料：
产品型号：D671X/F
产品名称：气动对夹式蝶阀
产品特点：气动对夹式软密封蝶阀,气动软密封蝶阀,对夹式软密封蝶阀
二、安来制造 气动对夹衬胶/衬氟蝶阀D671X/J -6/10/16 Q.C.P.R系列连接尺寸：
|
公称通径
|
结构长度(标准值)
|
外形尺寸（参考值）
|
连接尺寸(标准值)
|
|
0.6MPa
|
1.0MPa
|
1.6MPa
|
|
毫米
|
英寸
|
L
|
H
|
H0
|
A
|
B
|
D0
|
n-d
|
D0
|
n-d
|
D0
|
n-d
|
|
50
|
2
|
43
|
63
|
315
|
180
|
65
|
110
|
4-14
|
125
|
4-18
|
125
|
4-18
|
|
65
|
2 1/2
|
46
|
70
|
330
|
180
|
65
|
130
|
4-14
|
145
|
4-18
|
145
|
4-18
|
|
80
|
3
|
46
|
83
|
390
|
245
|
72
|
150
|
4-18
|
160
|
8-18
|
160
|
8-18
|
|
100
|
4
|
52
|
105
|
431
|
240
|
72
|
170
|
4-18
|
180
|
8-18
|
180
|
8-18
|
|
125
|
5
|
56
|
115
|
455
|
240
|
72
|
200
|
8-18
|
210
|
8-18
|
210
|
8-18
|
|
150
|
6
|
56
|
137
|
626
|
350
|
93
|
225
|
8-18
|
240
|
8-22
|
240
|
8-22
|
|
200
|
8
|
60
|
164
|
720
|
350
|
93
|
280
|
8-18
|
295
|
8-22
|
295
|
12-22
|
|
250
|
10
|
68
|
206
|
800
|
550
|
350
|
335
|
12-18
|
350
|
12-22
|
355
|
12-26
|
|
300
|
12
|
78
|
230
|
860
|
600
|
350
|
395
|
12-22
|
400
|
12-22
|
410
|
12-26
|
|
350
|
14
|
78
|
248
|
883
|
600
|
350
|
445
|
12-22
|
460
|
16-22
|
470
|
16-26
|
|
400
|
16
|
102
|
89
|
972
|
600
|
350
|
495
|
16-22
|
515
|
16-26
|
525
|
16-30
|
|
450
|
18
|
114
|
320
|
1043
|
750
|
380
|
550
|
16-22
|
565
|
20-26
|
585
|
20-30
|
|
500
|
20
|
127
|
343
|
1098
|
750
|
380
|
600
|
20-22
|
620
|
20-26
|
650
|
20-33
|
|
600
|
24
|
154
|
413
|
1236
|
750
|
380
|
705
|
20-26
|
725
|
20-30
|
770
|
20-36
|
|
700
|
28
|
165
|
478
|
1431
|
750
|
380
|
810
|
24-26
|
840
|
24-30
|
840
|
24-36
|
|
800
|
32
|
190
|
25
|
1488
|
750
|
380
|
920
|
24-30
|
950
|
24-33
|
950
|
24-39
|
|
900
|
36
|
203
|
620
|
1615
|
1250
|
380
|
1020
|
24-30
|
1050
|
28-33
|
1050
|
28-39
|
|
1000
|
40
|
216
|
725
|
1795
|
1500
|
580
|
1120
|
28-30
|
1160
|
28-36
|
1170
|
28-42
|
|
1200
|
48
|
254
|
780
|
1976
|
1500
|
580
|
1340
|
32-33
|
1380
|
32-39
|
1390
|
32-48
|
注：若用户需用阀板衬橡胶等特殊要求，订货时请注明。
